Routes

Overview​

OsmAnd has many powerful features for displaying different routes on the map. By default these routes are part of vector maps (OpenStreetMap data), however similar functionality is provided by tracks which could be created with Plan a Route, imported as GPX tracks, recorded with the Trip Recording plugin.

Type of Routes​

Routes represent different outdoor activities using data from OpenStreetMap. Tapping the shield icon with a route number or route flag on the map will open a context menu which provides additional information about the route and allows to use it as part of navigation.

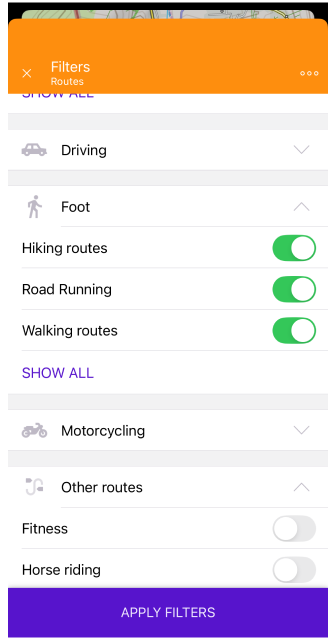

You can configure filtering of some route types in Configure Map menu.

Cycle routes​

Cycle routes are present as three types: local (lcn), regional (rcn), national (ncn), international (icn). Also cycle routes could be part of Node networks. You can choose how to assign color to the route segments:

  • Route.
    Map routes - cycle routes

  • Node networks.
    Map routes - cycle-node-networks

You can find more information in the Map Legend article.

Mountain bike routes​

MTB routes have specific mapping in OpenStreetMap and could be selected separately from cycling routes.

  • MTB scale. Shows trails according to MTB scale. You can find more information in the Map Legend article.
    Map routes - mtb trails

  • IMBA. Show MTB trails accorgind International Mountain Bicycling Association MTB IMBA. More information in the article Map legend.
    Map routes - mtb trails

Hiking / Walking routes​

Hinking routes are present as three types: local (lwn), regional (rwn), national (nwn), international (iwn). Also walking routes could be part of Node networks. OsmAnd doesn't separate walking and hiking routes and combines them into 1 group. You can choose how to assign color to the route segments:

  • OSMC. Colors routes according to their individual local color (if available in OpenStreetMap) and the tourist shield symbol.
    Map routes - hiking osmc

  • Network affiliation. Colors by network affiliation.
    Map routes - hiking network

  • Node networks. Colors routes according to the type of node network (international, regional, or local).
    Map routes - hiking node networks

Dirt Bike Trails​

The Dirt Bike Trails feature allows you to display dirt bike-specific routes on the map based on the dirtbike:scale tag. This scale highlights trails suitable for dirt biking, with a colored overlay showing difficulty levels.

You can activate this feature in Menu → Configure map → Routes → Dirt bike routes. The system functions similarly to the MTB scale, offering a visual representation of routes tailored to dirt biking. More about the dirtbike tag can be found here.

Map routes - Dirt Bike Trails

Hiking Trails Difficulty Grade​

Some road segments could be part of many routes but they could be individually colored to represent difficulty for the segment in mountainous areas. Currently OsmAnd supports Italian and Swiss classifications, each of them has a specific list of equipment requirements to access this segment.

  1. SAC scale
  2. CAI scale

Map routes - alpine hiking

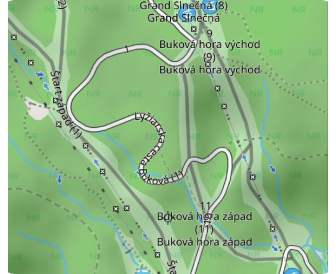

Ski routes​

Ski routes are a specific group of routes in OpenStreetMap. Typically these routes could be used with Winter and Ski map style with all visible Pistes.

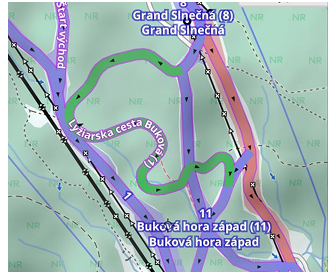

Map routes - ski slopes

Horse routes​

Horse routes are displayed as color-indicated routes with symbols for horseback riding.

Map routes - horse routes

Whitewater sports​

Whitewater routes are shown together with access icons, danger zones for whitewater tourism.

Map routes - whitewater sport

Running routes​

Running routes in OpenStreetMap are used for named, numbered, or otherwise marked running routes used primarily for athletics.

Fitness routes

Fitness trails​

A fitness trail is a trail or path equipped with obstacles or stations along its length to exercise the human body for the purpose of improving health.

Fitness routes

Travel routes​

⚠️ Android only
This feature is currently not available for the iOS version of the OsmAnd app.

Travel routes is part of custom files - Travelbook (.travel.obf). These travelbooks could be generated from user routes or could be part of extra Plugins.

Travel routes Travel routes

You can configure to display specific Travelbooks or specific type of Tracks or display tracks as Points or display Point groups (for example for Wikivoyage travelbooks). Read more information about Travel guides.

Display Routes on the Map​

Menu → Configure map → Routes

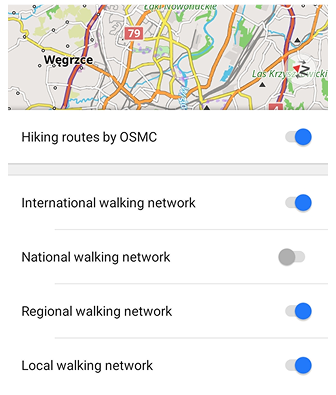

Configure Map Routes section

Map routes - hiking osmcMap routes - cycle-node-networks

Route Info and Elevation​

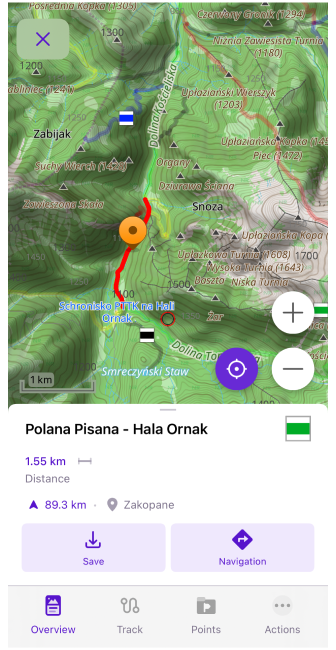

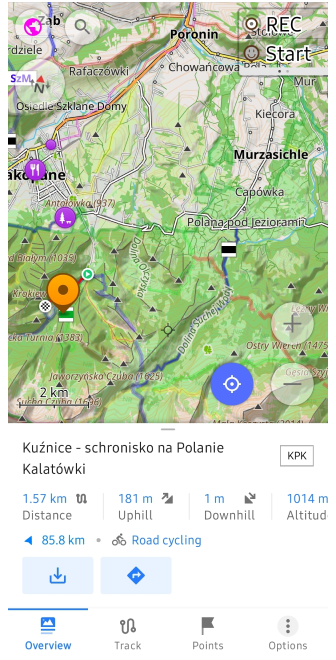

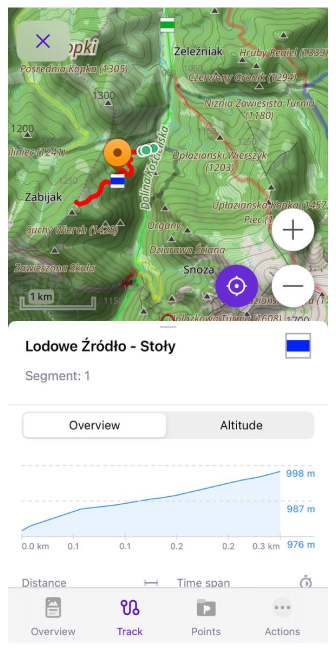

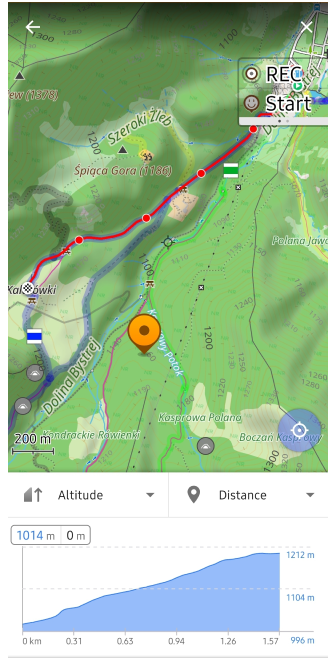

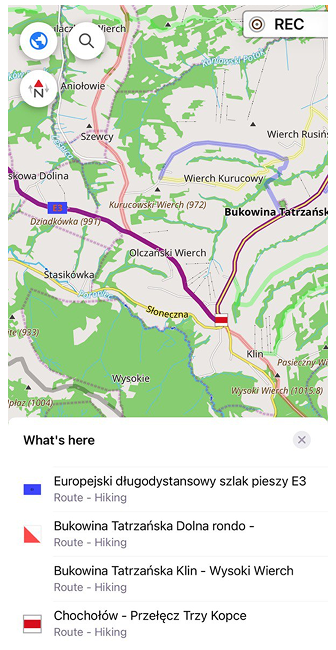

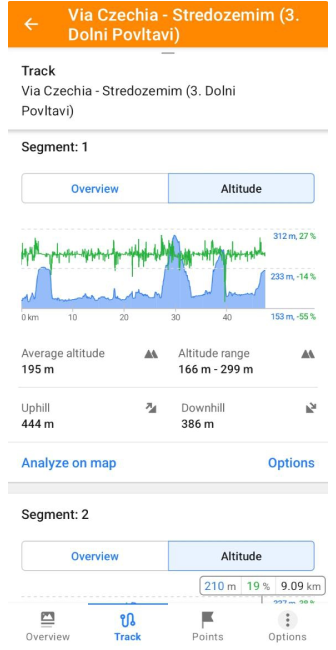

To get full route information and elevation data, tap the route icon (shield) on the map. If you have already used the Download button in the Track context menu, tap the line of the required route on the map.

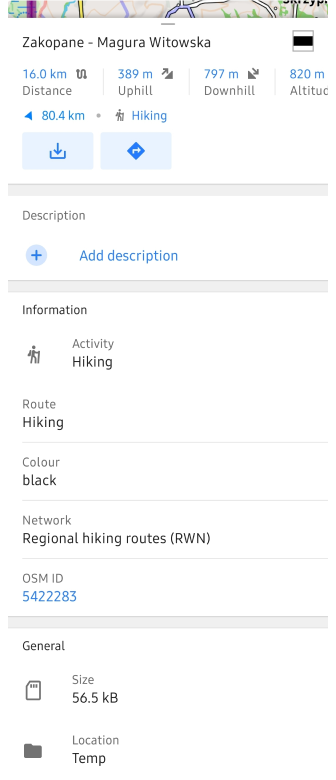

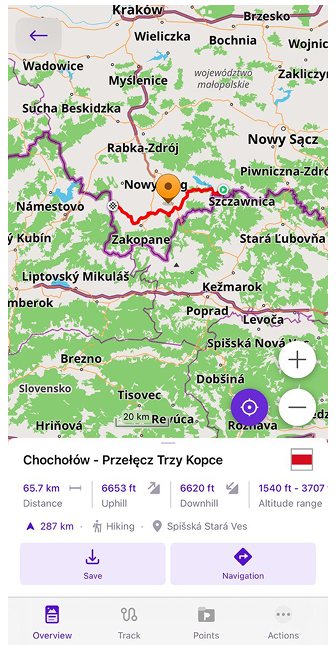

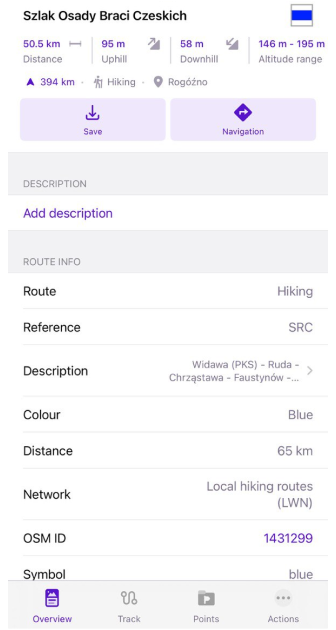

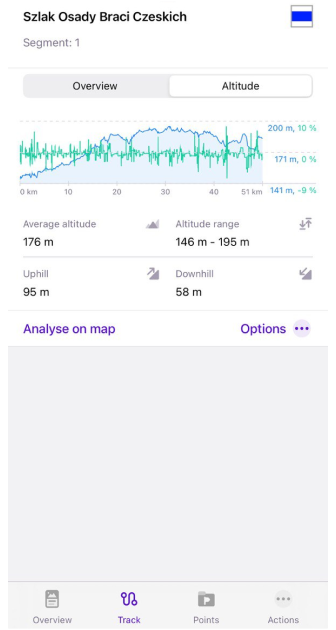

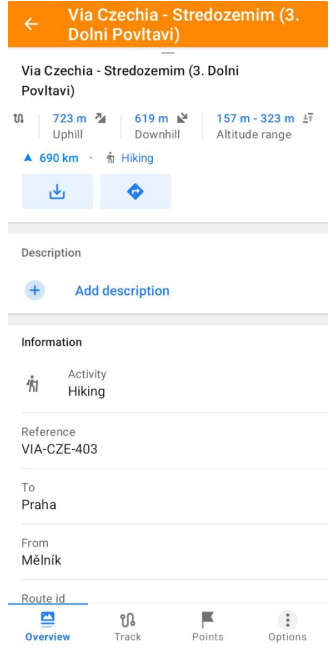

Route info

Following information will be visible in context menu:

  • Route info: Route name, OSM link (OSM Editing plugin required), Type, Description, Distance, Direction, Ascent/Descent, Altitude range, Network, Operator, State, Color, Roundtrip, Start/End points, and more.
  • General: Size, Location, Created on.
  • Additional Info: Type of activity.
  • Elevation info
  • Analyze Track on Map

Save as a Track​

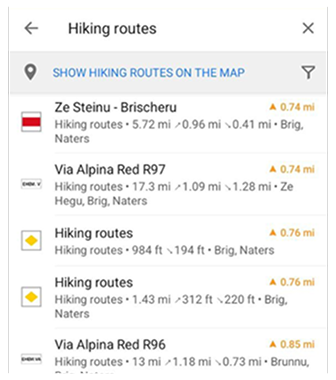

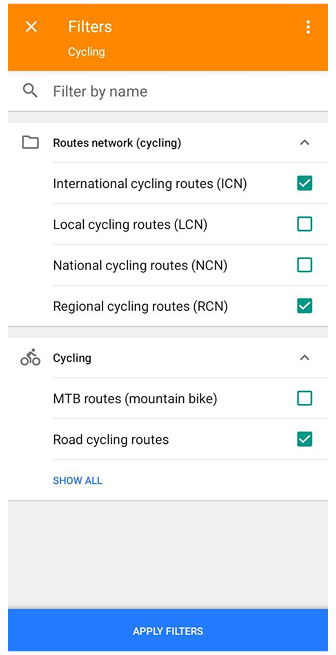

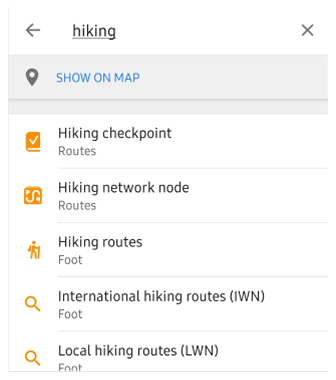

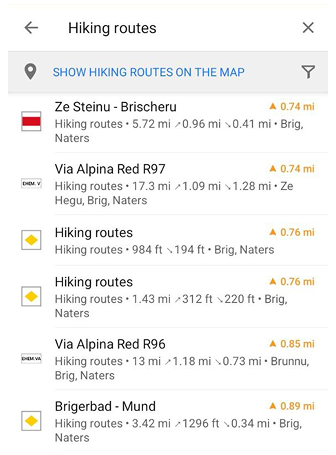

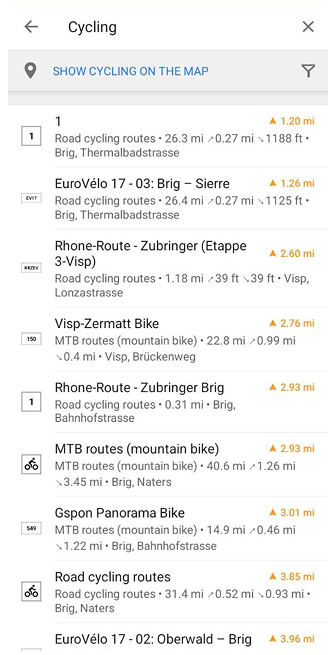

Routes on the ground Routes on the ground

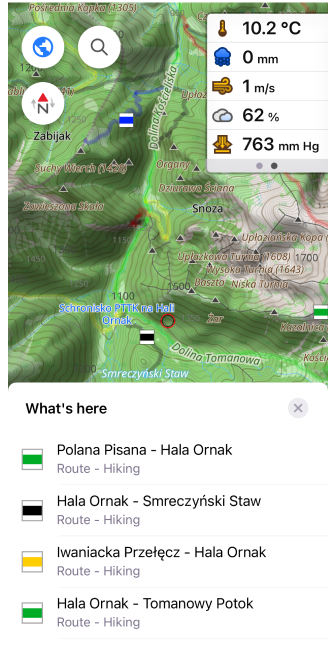

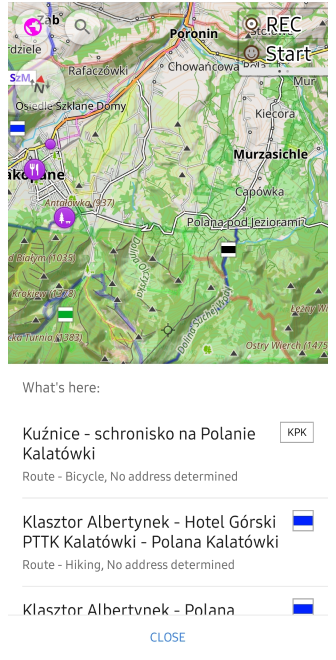

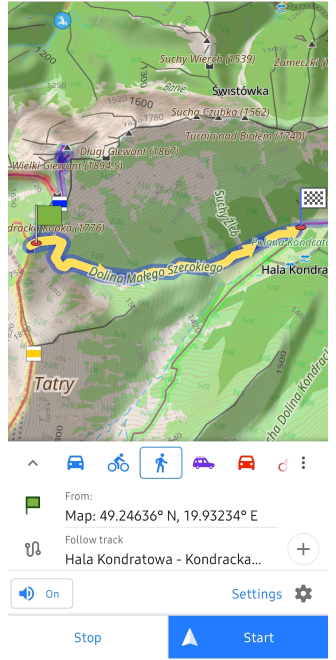

Hiking, Cycle, Travel, and other routes are available for selection on the map, and marked with OSMC symbols. If you tap a route symbol, a list of the routes nearest to it is offered. Selecting one of them opens the Track context menu of the route.

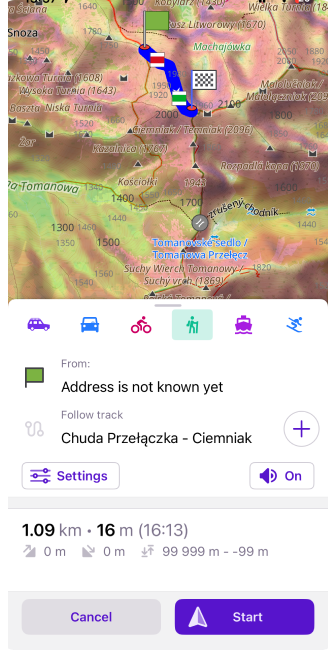

To save the route as a GPX file, tap the Save (Download) button under Info panel. This will open the Quick actions button panel where you will have access to track actions such as changing Appearance, Navigation, or editing Plan a route.

Quick Actions​

You can configure to switch on and off routes via Quick action widget.

This article was last updated in August 2024
